ZHICHUN 15 Inch Sunlight Readable Outdoor Industrial Computer

ZHICHUN 15 Inch 1024*768 resolution embedded Industrial PC. Apply on industrial machine or device to achieve industrial control, fountain control.


●  8 inch to 21.5 inch for option, multi-color LCD screen resolution available

● Standard PCAP touchscreen or resistive touchscreen

● 300 Nits (cd/m2) ~ 1,500 Nits (cd/m2) high brightness display

● Wide dimming range

● Support embedded installation and tabletop installation

● Backlight adjustment, multiple adjustment modes, provides comfortable operation during the night

● Multi-angle adjustment for table mounting

● Sealing and waterproof structure design

● CE, RoHS certified

● IP65 dust-proof and waterproof full-sealed front panel

● VGA, DVI, HDMI & composite video inputs

● 3-year warranty



Product Introduction PRODUCT SPECIFICATIONS ORDERING INFORMATION Data download

PRODUCT INTRODUCTION

ZHICHUN Style Z touch Panel PC is a model of industrial fanless embedded designed based on a capacitive touch screen Panel PC.

Z style industrial pc has tough characteristics such as dustproof, waterproof, and oil resistant.

The display screen is available in 7, 8, 10.1, 10.4, 12.1, 15, 15.6, 17, 19 and 21.5 inches.



PRODUCT SPECIFICATIONS

Basic Parameter

Sizes 15 inches
Resolution1024*768
Back lightLED
Brightness 300nits
Dynamic contrast1000:1
Touch screenCapacitive touch
Touch point   10-point touch
Respond Time  ≤5ms
Luminousness 85±5%
Surface Hardness 6H
Click Lifetime 50 millions times
Viewing AngleR/L:65(Typ.), U/D:65(Typ)
Communication InterfaceUSB interface
Operating System
Linux/Windows 7/8/10 32/64bit
ProcessorIntel Celeron J1900 (I3/I5/I7 optional)
RAM4GB DDR3 (8/16/32/64GB optional)
ROM64GB SSD (128GB/215GB/512GB/1TB optional)

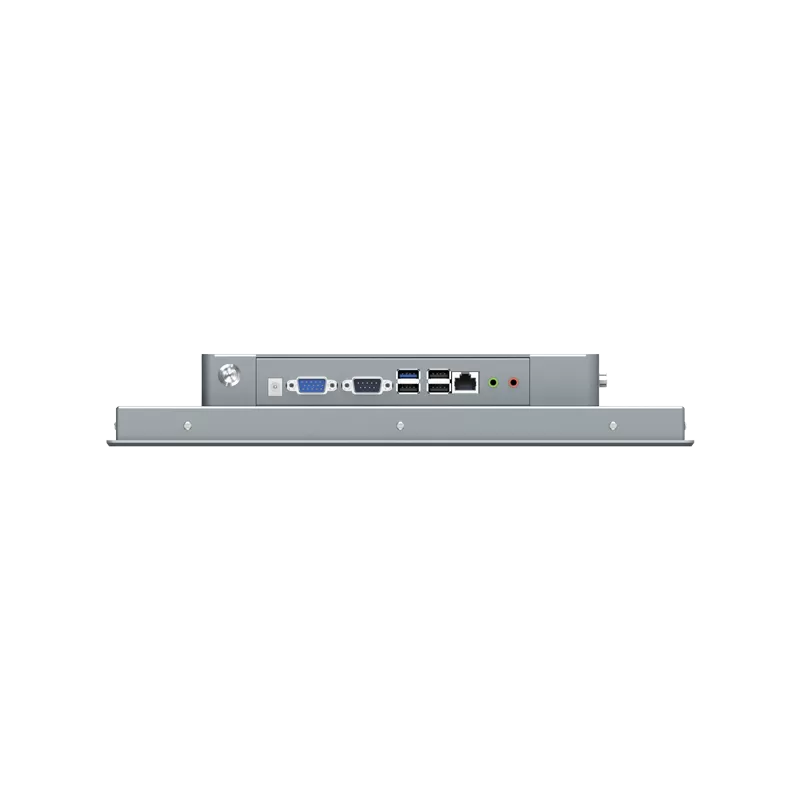

I/O Interface

USB4*USB
Display out1*VGA, 1*HDMI
LAN        1*RJ45(Gigabit Ethernet)
COM
2*COM(RS232/RS485/RS422)
Audio 1*Line-out,1*Mic-in
Power12V DC power input


Environmental Parameters

Operating Temperature-10-+60
Storage Temperature        -20-+70
Relative Humidity20%-90%


General Parameters

Outline Dimension  362*286*48mm(L*W*H)
Display Dimension 304*228mm(L*W)
Hole Size 350*274mm(L*W)
Shell Material Front panel aluminum alloy + metal middle cover + aluminum alloy rear cover
Installation TypeEmbedded,Wall-Mounted,Desktop,VESA


Optional Configuration

CPU Optional
Intel Celeron: J1800/J1900/J4125/J6412
Intel Core: I3/I5/I7-4th~11th Gen
RAM Optional
4GB/8GB/16GB/32GB/64GB
ROM Optional
64GB/128GB/256GB/512GB/1TB SSD


ORDERING INFORMATION

Free accessories

AccessoryDescription
Embedded buckle           4 pcs of embedded buckles+ 4 pcs of screws
Adapter1 pcs of 12V/5A adapter
Power cord1 pcs of 1.5m
HDMI cable1 pcs of 1.5m
Touch pen1 pcs

Optional accessories

AccessoryDescription
Power cord                     1 pcs of 3m/5m
Wall-mount plate1 pcs of wall-mount plate
Desktop stand1 pcs of desktop stand
