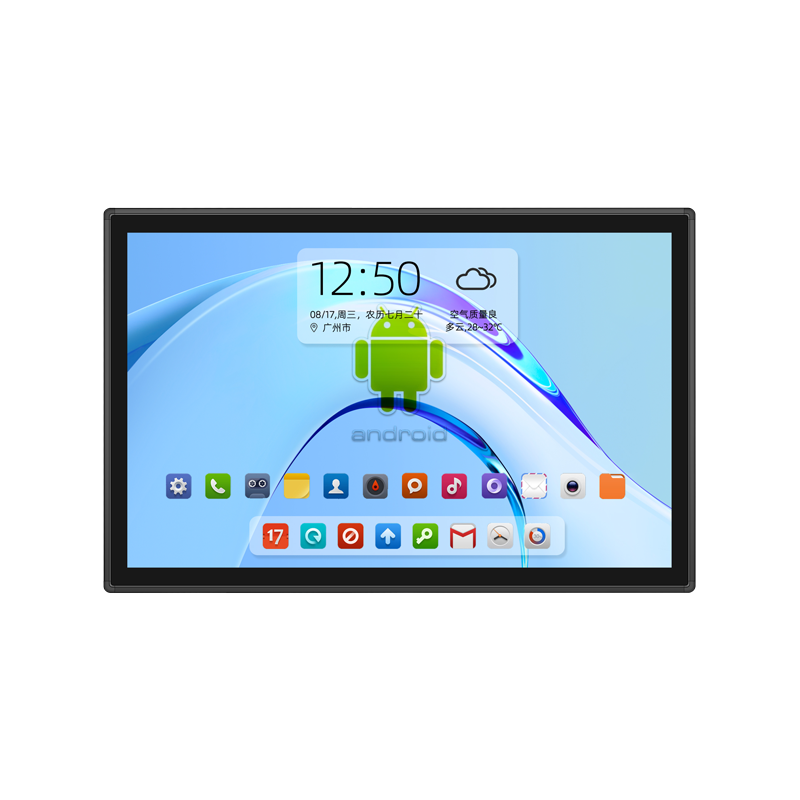

Industrial grade front panel IP65 waterproof dust-proof 10-point touch capacitive touch 1920*1080 resolution embedded Panel PC.
Advantages
● The rear cover of the panel PC is designed with a circular arc structure, good for heat dissipation.
● Full-flat seamless front panel design, easy to maintain, good for embedded installation.
● IP65 waterproof and dustproof, effectively withstanding the infiltration of dust and water vapor.
● Aluminum alloy shell offers a strong antioxidant performance.
● Surface hardness of screen up Mohs' 7H level, providing well impact resistance.
● Shock-proof, high and low-temperature resistance, working temperature range up to - 20 ~60°C.
● Anti-EMI: it meets the EMI/EMC standards, performs perfectly in harsh conditions.
● Reserved dustproof and waterproof speaker hole: adopting the industrial sound transmission material.
● External key adjustment function: built-in button for adjusting screen brightness, it reduced complex and tedious operation.
● Low power consumption due to advanced heating-dissipation features.
PRODUCT INTRODUCTION
Style S touch Panel PC is a model of industrial fanless open frame designed based on a capacitive touch screen Panel PC. It has tough characteristics such as dustproof, waterproof, and oil resistant. The display screen is available in 7, 10.1, 11.6, 13.3, 14, 15, 15.6, 17, 17.3, 18.5, 19, 21.5, 23.6, 27 and 32 inches.
PRODUCT SPECIFICATIONS
Basic Parameter
| Sizes | 13.3 inches |
| Resolution | 1920*1080 |
| Back light | LED |
| Brightness | 300nits |
| Dynamic contrast | 1000:1 |
| Touch screen | Capacitive touch |
| Touch point | 10-point touch |
| Respond Time | ≤5ms |
| Luminousness | 85±5% |
| Surface Hardness | 6H |
| Click Lifetime | 50 millions times |
| Viewing Angle | R/L:65(Typ.), U/D:65(Typ) |
| Communication Interface | USB interface |
| Operating System | Android 7.1/8.1/9/11/12 |
| Processor | RK3288 (RK3399/RK3568/A311D optional) |
| RAM | 2GB (4GB/8GB optional) |
| ROM | 8GB eMMC (16GB/32GB/64GB optional) |

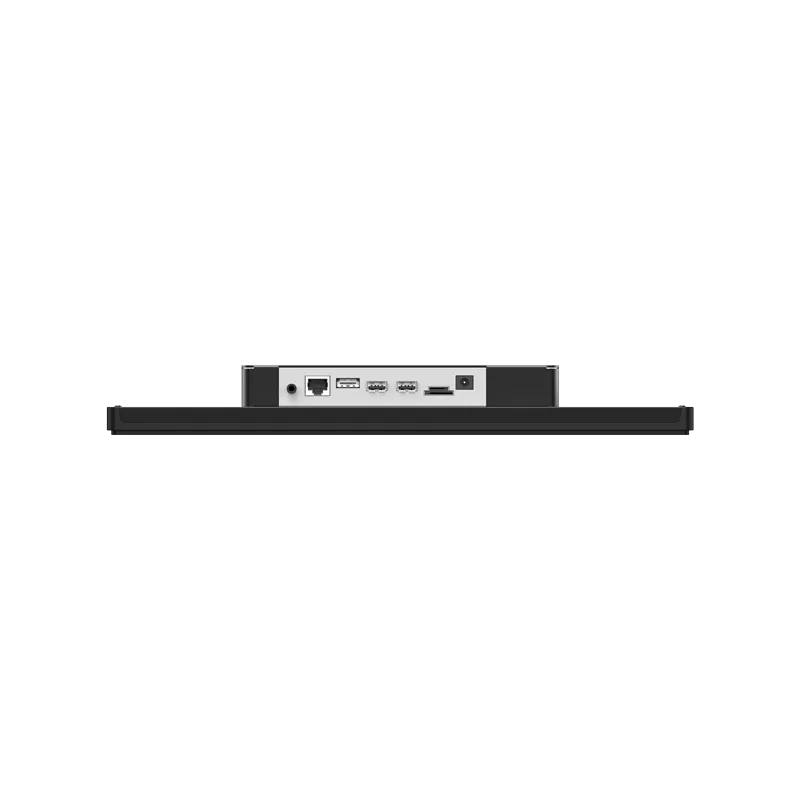

I/O Interface
| USB | 2*USB |
| Display out | 1*HDMI |
| LAN | 1*RJ45(Gigabit Ethernet) |
| 4G LTE | 1*SIM slot(4G module optional) |
| Extended storage | 1*TF card slot |
| Audio | 1*Line-out |
| Power | 12V DC power input |
Environmental Parameters
| Operating Temperature | -10－+60 |
| Storage Temperature | -20－+70 |
| Relative Humidity | 20%－90% |
General Parameters
| Outline Dimension | 336.5*207.7*39.1mm(L*W*H) |
| Display Dimension | 297.2*168.7mm(L*W) |
| Hole Size | 326.3×198mm(L*W) |
| Shell Material | Plastic+Metal plate |
| Installation Type | Embedded,Wall-Mounted,Desktop,VESA |
Optional Configuration
| Motherboard Optional | RK3288 | RK3399 | A311D | RK3568 | ||||
| Version Optional | Android 7.1 | Android 8.1/9/11 | Android 9 | Android 11/12 | ||||
| RAM Optional | 2GB/4GB | 2GB/4GB | 4GB/8GB | |||||
| ROM Optional(eMMC) | 8GB/16GB/32GB | 16GB/32GB/64GB | 16GB/32GB/64GB | |||||
ORDERING INFORMATION
Free accessories
| Accessory | Description |
| Embedded buckle | 4 pcs of embedded buckles+ 4 pcs of screws |
| Adapter | 1 pcs of 12V/5A adapter |
| Power cord | 1 pcs of 1.5m |
| HDMI cable | 1 pcs of 1.5m |
| Touch pen | 1 pcs |
Optional accessories
| Accessory | Description |
| Power cord | 1 pcs of 3m/5m |
| Wall-mount plate | 1 pcs of wall-mount plate |
| Desktop stand | 1 pcs of desktop stand |
